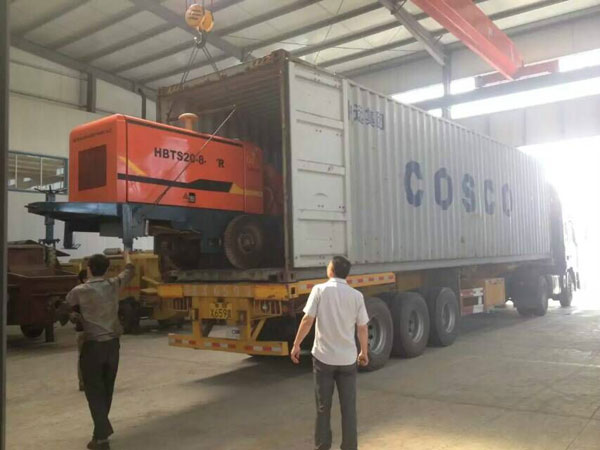

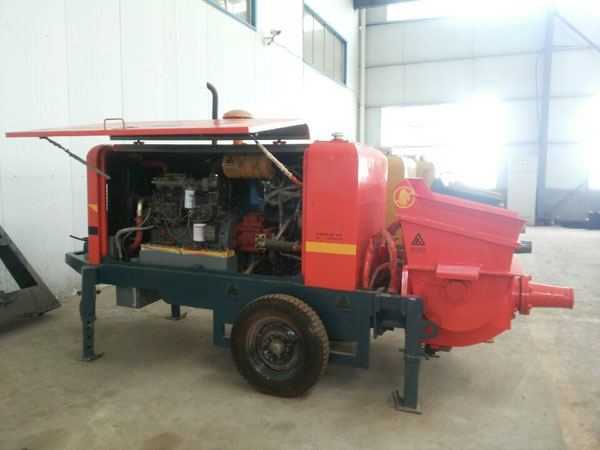

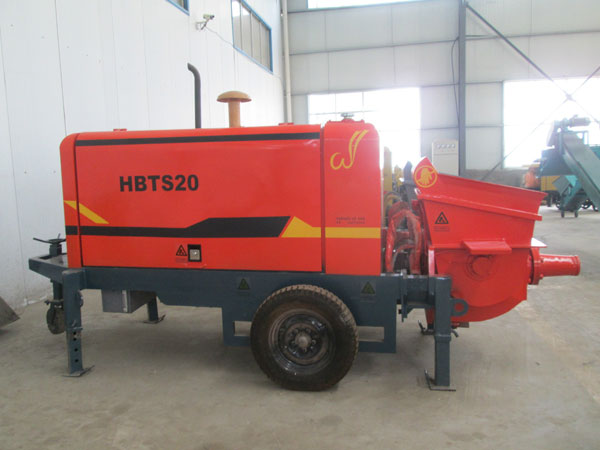

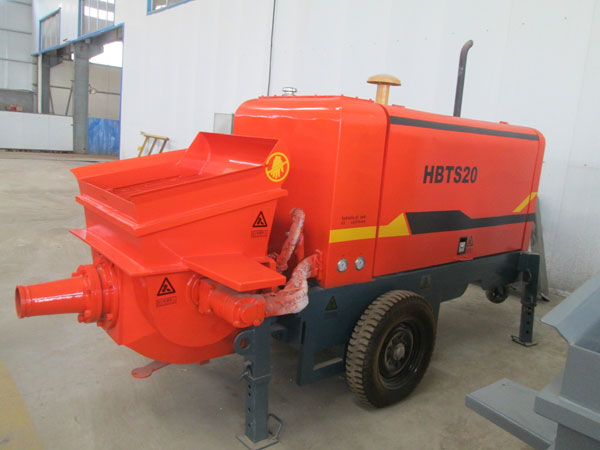

HBTS20R
HBTS20R
Item （项目） | Unit | HBTS-20R |
Max. Theoretical Concrete Output | m³/h | 20 |
Max. Concrete Pumping Pressure | Mpa | 8 |
Distribution valve | S Valve | |
Conveying tube inner Dim（输送管内径） | mm | Φ125A |
Max. Theoretical Conveying Distance (Horizontal Distance/Perpendicular Height)（理论输送距离 （水平/垂直 ） | m | 200/60 |
Concrete Cylinder Diameter（混凝土缸直径） | mm | 140*750 |
Maximum aggregate size（骨料尺寸 ） | mm | 30 |
Concrete slump range（混凝土坍落度 ） | mm | 120-230 |
Diesel model（柴油机型号） | - | 广西玉柴 |
Power（功率） | kw | 58kw |
Fuel tank capacity（油箱容量） | L | 300 |
Cleaning method(管道清洗方式) | High pressure washing | |
Dimension（尺寸） | mm | 4100*1400*1450 |
Total Weight （重量） | kg | 2500 |
2.Characteristics of diesel engine concrete pump:
1, fuel saving, strong power and long service life. The whole machine adopts intelligent operation, and it has different working environment with motor and pump (working in no power supply environment). Excellent pumping capacity, faster pumping speed, less blockage, higher cost performance.
2, the hydraulic system to pump and distribution valve reversing, with each process "increasing the power" ability to effectively reduce the probability of pumping blockage, improve pumping stability, and enhance the adaptability of the concrete.
3, reversing device has high voltage buffering performance, make the S valve swing more force, avoid impact S valve, because concrete material is bad and the possibility of being stuck is obviously lower.
4, lubrication system has supercharging function, can effectively enhance the automatic lubrication system pressure, avoid lubrication road obstruction, improve the reliability of work.
5, parts of good versatility, interchangeability, procurement convenience, maintenance costs at the end.
